Macchina per marcatura laser a fibra

Leggero, portatile e facile da usare

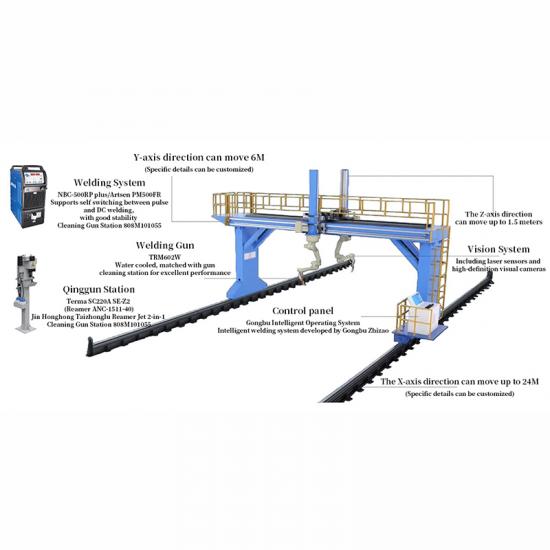

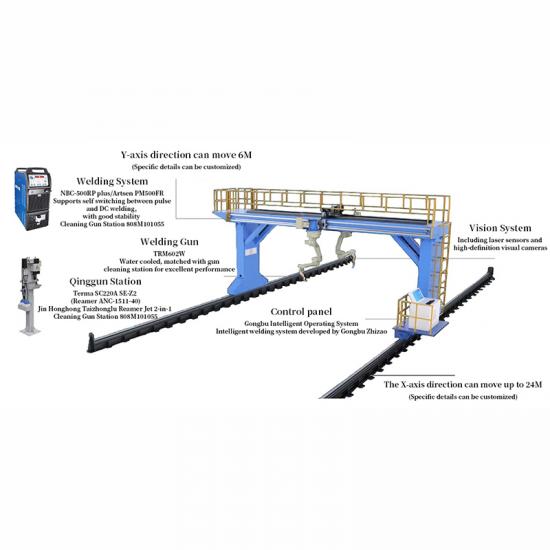

The gantry type multi additional axis dual machine intelligent welding workstation is mainly used for robot automated welding of various steel structure buildings, bridges, ships and other structures. The workstation meets the welding requirements of various corner welds such as H-shaped steel structures, bridge slab units, and horizontal plates, and has continuous upgrading conditions. It will also adapt to welding in other scenarios in the future. Each gantry welding workstation includes a control system, gantry walking mechanism, 2 sets of arc welding robots, 2 sets of robot welding power supplies and cooling water tanks, 2 sets of intelligent welding vision systems, and 2 sets of water cooling gun systems.

Sei assi Il collegamento può completare qualsiasi in spazio. La perfetta combinazione di braccio meccanico e saldatrice a fibra laser può soddisfare le esigenze di vari automatiche produzione. È ampiamente utilizzato nella saldatura automatica di stoviglie, bagno, maniglie per porte e parti di precisione e hardware.

This straight seam welding machine adopts the keys pressing mechanism, for work-piece in welding process provides a uniform and stable clamping force and cooling effect, reduces the deformation of welding and post weld heat-affected zone of the weld impact. Thus ensuring the work-piece welding is flat and smooth. Welding process using a welding process of welded forming on both sides, ensuring weld 100% welded. It is suitable for MIG/MAG and TIG welding of ferrous or nonferrous metals. Customers can choose the equipment, gas protection, water cooling, seam tracking.

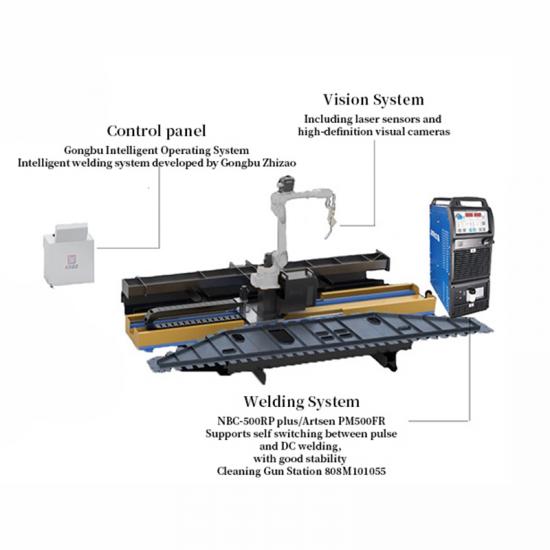

Each set of ground track welding workstation includes: arc welding robot, ground track walking mechanism, welding power supply, welding gun and water cooling system, vision system, intelligent welding system (standard configuration). The ground track length is 6 meters/9 meters, capable of X-axis displacement including ground track, gear rack, various linear guides, etc. The working range of the workstation in the Y-axis direction is 1.5 meters on each side, depending on the length of the track

The welding platform is a modular fixturing system built on a precision grid base, designed to position and clamp workpieces with high repeatability. Its main function is to provide a versatile and flexible foundation for automation, transforming any welding process into a more efficient, precise, and adaptable automated operation.

Nine Axis Cantilever Intelligent Workstation is mainly used for the welding production of intermediate assembly structures of ships and bridges, as well as workpieces of high mechanical equipment types. The Nine Axis Cantilever Workstation is compatible with the adaptability of ground rail, seven axis cantilever, and eight axis cantilever workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.

Eight Axis Cantilever Intelligent Workstation is mainly used for the welding production of bridge and ship plate unit structures and other types of workpieces. The eight axis cantilever workstation is compatible with the adaptability of ground rails and seven axis cantilever workstations, improving the adaptability in the width direction. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding
