Handheld  laser cleaning machine

1000Watt .Macchina per la pulizia laser per impieghi pesanti a onde continue a mano

Questo .Tipo di laser Pulizia Macchina principale per la pulizia ruggine, macchina Scegli laser a fibra a onde continui, non è adatto per alta precisione prodotti.


  • Marca:

    PES LASER
  • Oggetto numero.:

    PES-C1500/2000/3000
  • Pagamento:

    30% DEPOSIT,70% BEFORE DELIVERY
  • Origine del prodotto:

    CHINA
  • Colore:

    CUSTOMIZATION
  • Porto di spedizione:

    SHANGHAI/NINGBO/GUANGZHOU/QINGHAI
  • Tempi di consegna:

    10-15 day
  • Panoramica
  • Caratteristiche
  • Specifiche
  • Rfq.

  • Ad alta efficienza, buona effetto
Automazione.Sable .Pulizia Efficienza.No Pulizia chimica Fluidrequired.
  • Qualità della pulizia del monitor in tempo reale
Monitoraggio in tempo reale della pulizia effetto.precise Pulizia, con posizione accurata, dimensioni precise e pulizia selettiva
  • Senza .Danni alle parti Matrix.
Posizionamento accurato senza danni alle parti Matrix. La macchina per la pulizia del laser può pulire la superficie di materiali molto sensibili, come alluminio, carbone, acciaio inossidabile, polimero rinforzato in fibra di carbonio o materiale di rivestimento in fibra di carbonio senza danneggiare il materiale Materiale.
  • ECO .e protezione dell'ambiente

Pulizia alta Pulizia.precise Pulizia, con accurata Posizione. Pulisci in modo efficace Livello micron Inquinamento Particelle. Protezione sicura e ambientale, no materiali di consumo.





  • Pulizia portatile Headsimple struttura portatile, portatile.ergonomico Design.
  • Facile da operare.Detachable Frontale flessibile,raggiungere Auto Focus.
  • 0,8 kg, leggero senza affaticamento


  • Sistema di controllo Semplice chiaro e conciso interfaccia. Facile per operare.
  • Impostazione multipla parametri Disponibile. Facile Per ottenere il controllo per la sorgente laser e lente.



  • refrigeratore industriale integrato, Nessun refrigeratore esterno richiesto
  • Built-in. Lase .r Fonte, Design integrato, facile da spostare



raggio laser 1000Watt . Raycus .Laser in fibra a onde continue, lunghezza d'onda delle emissioni 1080 ± 5nm
raffreddamento
Industriale integrato refrigeratore (purificato Acqua o distillata Acqua)
lunghezza del cavoCavo in fibra Lunghezza 10m, lunghezza del cavo operabile 8m
PULIZIA DELLA PULIZIA 0,8 kg PULIZIA DELLA PULIZIA
Wobble Width.Regolabile 20-100mm
Gas di protezionePressione del gas compressa 5-10L / min
interfaccia utente
Per .Controllo laser: potenza, frequenza, frequenza, larghezza spot
linguaggio Cinese-inglese
Safty .

Attrezzatura laser di classe 4, macchina con CE, FDA Certificato.

La macchina è dotata di allarme di errore Funzione, Emergenza Stop, refrigeratore Allarme.

Requisiti di potenza 220 ± 10% v AC, 50 / 60Hz Personalizzazione .
Ambiente operativo Temperatura (℃) 10 ~ 40 ℃
Umidità (%) 70.
Dimensioni (W × H × D) 700 * 1150 * 1200mm
peso 250kg .
lasciate un messaggio
Se .Sei interessato ai nostri prodotti e vuoi sapere più dettagli, ti preghiamo di lasciare un messaggio qui, ti risponderemo non appena saremo
prodotti correlati
Laser cleaning machine
macchina per la pulizia laser a impulsi raffreddata ad aria
macchina di pulizia laser raffreddata ad aria è una nuova generazione di pulizia delle superfici di prodotti ad alta tecnologia.facile da installare, manipolare e automatizzare. semplice operazione, può rimuovere la superficie dell'oggetto resina, olio, macchie, sporco, torbido ricamato, rivestimento, rivestimento, vernice.
Laser cleaning machine
macchina per la pulizia laser a impulsi raffreddata ad acqua
questa macchina per la pulizia laser è adatta per superfici metalliche.il raggio laser è in grado di ottenere l'effetto di pulizia desiderato in modo preciso e semplice.non richiedono soluzioni detergenti chimiche o materiali di consumo.pulizia senza contatto, proteggendo la base dei componenti dai danni.con la funzione di pulizia precisa, è possibile realizzare una pulizia selettiva di posizione precisa e dimensione precisa.
intelligent welding
Stand-alone Intelligent Workstation
Utilizing self-developed intelligent welding and vision systems, the workstation employs visual photography, line marking, and laser scanning to precisely identify and calculate the position of weld seams. Based on the scanning results, the actual position of the weld seam is determined; the workstation automatically matches the welding process according to the size of the weld angle, including current, voltage, welding speed, and torch posture. Furthermore, based on welding trajectories and processes, program instructions recognizable by robots are created and transmitted to them for welding.
robot welding

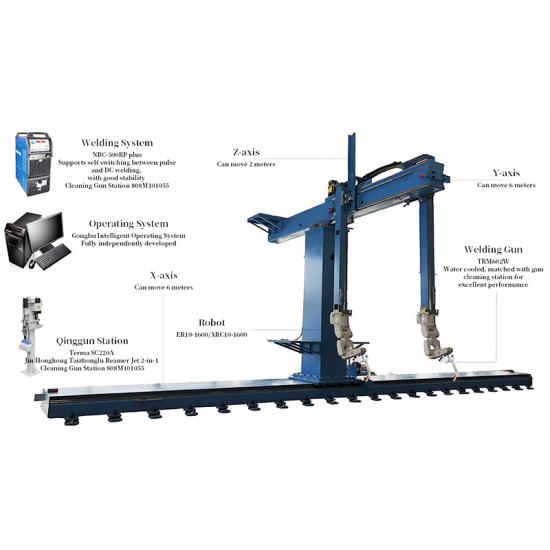

Cantilever Eight-axis Intelligent Workstation
Eight Axis Cantilever Intelligent Workstation is mainly used for the welding production of bridge and ship plate unit structures and other types of workpieces. The eight axis cantilever workstation is compatible with the adaptability of ground rails and seven axis cantilever workstations, improving the adaptability in the width direction. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding
Laser Welding Machine For Sale
Cobot .Sistema di saldatura laser
La saldatrice laser portatile può funzionare con il manuale, può anche installare su robot per rendere la macchina funzionante Full-Automatic e aumentare il lavoro Efficienza.
 Gantry Seven-axis Intelligent Workstation .

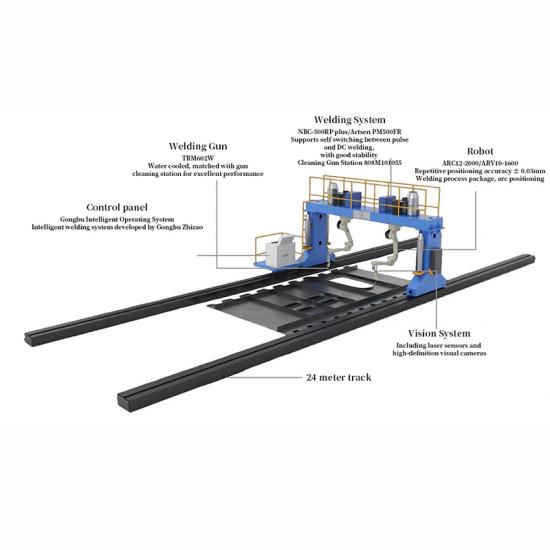

Gantry Seven-axis Intelligent Workstation
Seven axis gantry intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis gantry workstation is compatible with the adaptability of ground rails and seven axis cantilever workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.
#lasercuttingmachine#lasercutter
Fiber laser cutting machine
Laser cutting machine is an advanced tool that uses high-power laser beam to cut various materials. Its working principle is to focus the high-energy laser beam on the surface of the material, thereby locally heating and melting the material, and using auxiliary gas (such as oxygen, nitrogen or compressed air) to blow away the molten material to achieve cutting. Brand: PES LASER Item NO.: PES-T3000 Order(MOQ): 1 Payment: 30% DEPOSIT,70% BEFORE DELIVERY Product Origin: CHINA Shipping Port: SHANGHAI/NINGBO/GUANGZHOU/QINGHAI Lead Time: 35 day Product Weight: 3000KG
intelligent welding

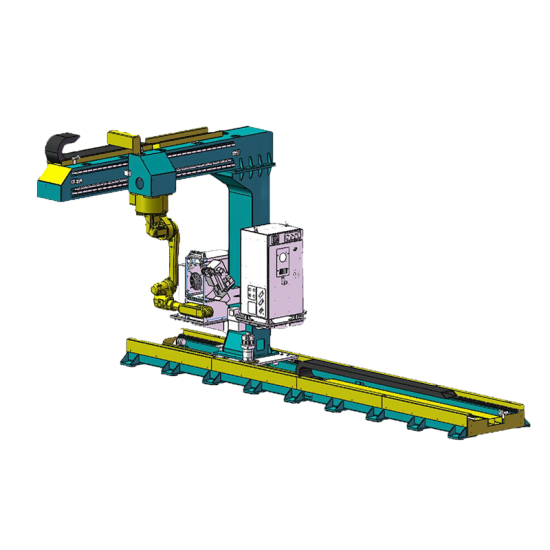

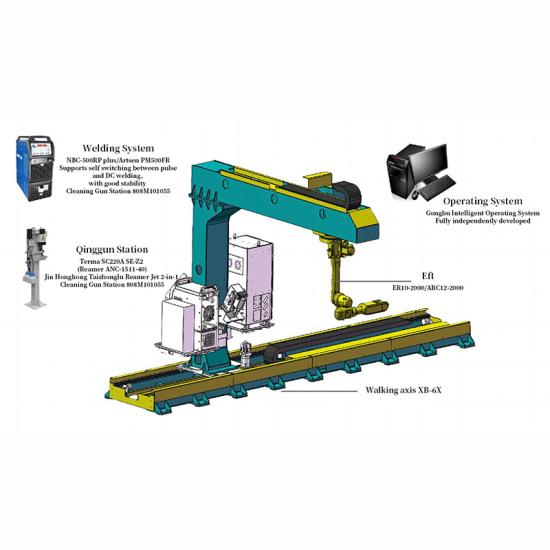

Cantilever Nine-axis Intelligent Workstation
Nine Axis Cantilever Intelligent Workstation is mainly used for the welding production of intermediate assembly structures of ships and bridges, as well as workpieces of high mechanical equipment types. The Nine Axis Cantilever Workstation is compatible with the adaptability of ground rail, seven axis cantilever, and eight axis cantilever workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.
